A tunnel lining can pass its specified compressive-strength tests and still leak at a construction joint. The concrete may be sound, but shrinkage, movement or changing water pressure may have caused the seal to lose contact. Safety depends on material properties, the interfaces between materials and how both hold up over years of exposure.
Materials serve different functions in a tunnel: carrying ground loads, limiting water ingress, retaining capacity during a fire or allowing damage to be detected before it worsens. Specifications should begin with the required function, likely exposure and consequence of failure, rather than a preferred product name.
Translate hazards into material requirements
Groundwater chemistry, dissolved salts, freeze–thaw exposure near portals, stray electrical currents and vehicle or train operating conditions can vary along a single alignment. Each creates a different material risk. Sulfates may react with susceptible cementitious phases; chloride-bearing water can increase corrosion risk if it reaches steel; sustained flow can carry fine particles through defects. Resistance to one mechanism does not establish resistance to the others.
Normal and exceptional conditions also call for separate assessments. Concrete selected for long-term moisture exposure may respond differently to rapid heating in a fire. A seal that holds under steady water pressure may fail if its joint repeatedly opens and closes. Each performance claim needs its own test evidence or justification.
- Define the function: load transfer, water exclusion, corrosion protection, fire resistance, drainage or inspectability.
- Identify the exposure: chemistry, moisture, temperature, pressure, movement and maintenance access.
- Identify the vulnerable interface: joints, penetrations, repairs, fixings and transitions between construction methods.
- Choose measurable evidence: properties, compatibility tests, construction records and condition-monitoring observations relevant to the function.
A high result in one laboratory test is not proof of overall safety. Compressive strength, for example, says little on its own about crack width, permeability at a joint or corrosion beneath a damaged coating.
Concrete linings: control transport and cracking, not just strength
Mix design and curing
In reinforced or segmental concrete linings, connected pores and cracks give water and dissolved agents a path through the material. Binder composition, water-to-binder ratio, aggregate grading, compaction and curing all affect that network. Supplementary cementitious materials can improve resistance to some transport processes, but results depend on the binder combination, curing and exposure. A substitution should be assessed as part of the full mixture, not assumed to improve every durability measure.
Early-age cracking needs particular attention in cast-in-place linings. Hydration heat, restraint from adjacent concrete and subsequent cooling can produce tensile stresses before the concrete has developed much tensile capacity. Drying shrinkage adds to restraint-related cracking. Temperature management, pour sequencing and curing directly affect material performance.
Factory production of precast segments can make batching and curing more consistent. Handling and assembly introduce different risks: a chipped corner or damaged gasket groove may impair local bearing or sealing even when cylinder tests pass. Inspection criteria need to cover dimensions, surface condition and embedded components as well as concrete properties.
Reinforcement and fibers
Steel reinforcement provides tensile capacity where the structural design requires it and helps control cracking. Its durability depends on adequate concrete cover and on limiting the entry of corrosion-promoting agents. Fibers alter post-crack behavior and, in some mixtures, can help limit explosive spalling during rapid heating. Fiber type and dosage should not be carried over from another project without testing; workability, distribution, crack response and fire performance depend on the complete mixture and lining geometry.
Corrosion-resistant reinforcement may be appropriate where exposure and service-life analysis support its use. Nominal corrosion resistance is only part of the decision. Anchorage, stiffness, thermal behavior, joint details and inspectability still have to satisfy the structural requirements. Comparisons should be based on verified system performance under the project’s exposure conditions.
Waterproofing and drainage are different safety strategies
A waterproofing membrane limits water movement into the tunnel. A drained lining instead provides a collection path for water that reaches it, directing that water away from vulnerable spaces. Many tunnels use barriers, seals and drainage together, with a defined role for each. A blocked drain can raise pressure behind a lining; a punctured membrane can concentrate inflow at one defect. An initial impermeability rating will not reliably reveal either problem.
Membrane performance depends on substrate preparation, protection during reinforcement or segment installation, sound seams and careful treatment at penetrations. Sharp projections and trapped debris can cause local damage. If the membrane will be inaccessible after construction, seam inspection and testing before cover-up are especially important. Compatibility with groundwater, adjacent sealants and grouts also needs checking.
Segment gaskets must maintain contact pressure across a joint despite construction tolerances and expected movement. Compression, joint geometry, material aging and installation condition all affect the result; specifying an elastomer by name alone leaves those factors unresolved. Before choosing a leak repair, record joint opening, offset, gasket position and water pressure. Injection without an understanding of the water pathway may divert the leak elsewhere.
Fire exposure changes the material problem
Rapid heating can create steep temperature gradients through a concrete lining. Moisture migration and thermal stresses may contribute to surface spalling, reducing cover and exposing reinforcement or other structural elements. The response depends on the mixture, moisture state, heating history and restraint. Good results in conventional durability tests do not establish performance in a severe tunnel fire.

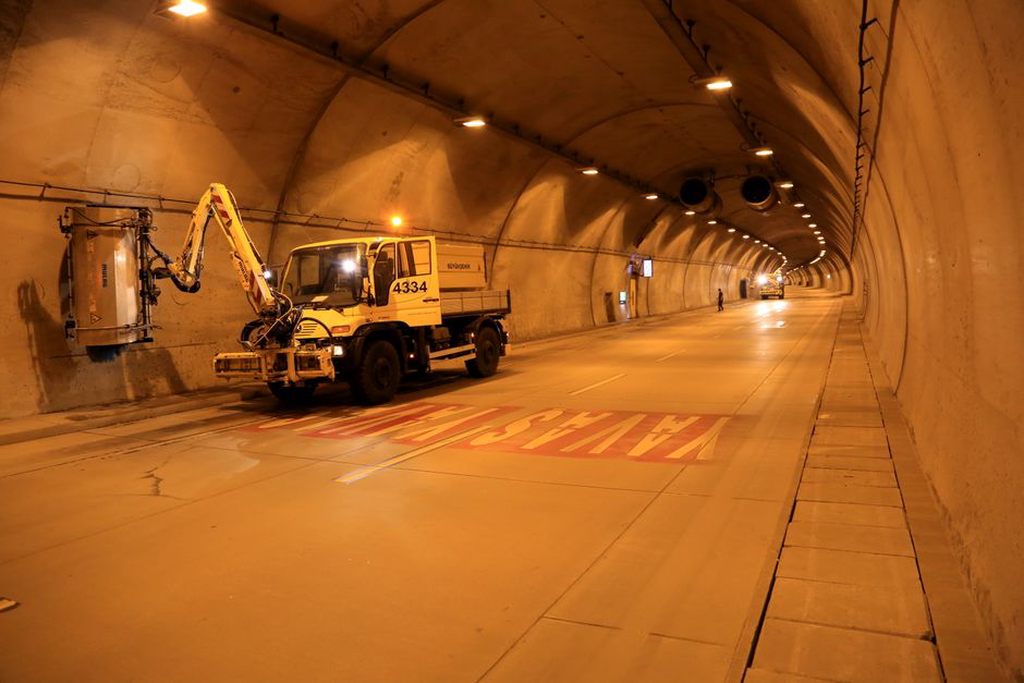

Passive fire-protection boards, sprays and fire-resistant lining mixtures aim to limit heat transfer or preserve structural capacity for a defined scenario. Selection must account for fixings, joints, vibration, routine washing and possible water accumulation behind the protective layer. If the system detaches, hides persistent leakage or cannot be inspected, it introduces an operational risk of its own.
After a fire, discoloration alone cannot establish remaining capacity. Mapping spall depth, checking reinforcement and fixings, and choosing suitable in-situ and laboratory investigations provide stronger evidence. Sampling locations should reflect observed heat exposure and lining construction, not just ease of access.
Steel, coatings and electrical exposure
Steel is used in linings, anchors, support frames, cable fixings and equipment mounts. Condensation, seepage and electrical exposure vary between components. Water pooling at a fixing can leave a small connection more vulnerable than a larger, drier member nearby. Coatings and metallic protection systems can reduce corrosion, but edges, threads and damage during installation remain weak points.
In electrified transport tunnels, stray-current pathways may need assessment where conductive components and surrounding ground or water form an electrical circuit. Material selection alone cannot resolve the risk. Electrical continuity, isolation details and monitoring provisions need coordination between structural and rail systems designers. Coatings should also be assessed at connections and under maintenance conditions, where damage is more likely than on an untouched test panel.
Grouts, repair mortars and the host material
Grout may fill the annular space behind a segmental lining, stabilize local voids or control a water pathway. It must reach the intended volume without excessive segregation or washout, then develop the properties needed for support or sealing. Pressure and volume records matter alongside strength results. Unexpectedly high grout take can indicate a connected void or escape path; refusal does not, by itself, prove complete contact.
Repair mortars must be compatible with the existing lining. A very stiff, low-permeability patch on a cracked or damp substrate may move stresses and moisture toward the patch perimeter. Surface preparation for bond, compatible thermal and mechanical behavior, and the cause of the original damage all need attention. For active leaks, the repair plan should distinguish between stopping water at its source and directing it through a controlled drainage path.
A trial repair on a representative substrate can test surface preparation, placement, curing and bond assessment before work begins. It cannot reproduce every future groundwater condition, but it can show whether the specified process is workable within the available access window.
Verification should follow the failure mechanism
Each quality-assurance measurement needs a purpose. Fresh-concrete tests can reveal changes in workability; strength specimens track strength development; permeability-related tests investigate transport through intact material. None verifies a completed joint or concealed membrane seam on its own. Placement and curing records, gasket installation checks and seam tests address different evidence gaps.
In service, inspections should distinguish wet staining, active flow, salt deposits, rust staining, cracking, delamination and displacement. They can point to different causes and levels of urgency. Changes over time matter: a stable damp patch is not equivalent to increasing inflow accompanied by joint movement. The detection limits of acoustic methods, and the need to corroborate their findings, are discussed in Acoustic Monitoring of Tunnel Linings: Methods, Alerts and Limits.
Material records should link each installed product and batch to its location, test results and construction conditions. If a segment joint later leaks, investigators can compare its gasket, groove condition and installation sequence with unaffected joints. The first field note should capture the joint location, observed opening or offset, inflow condition and whether leakage changes with groundwater level. Without those observations, even a well-documented material certificate offers little help in diagnosing the leak.
