A track can hold acceptable surface geometry while the foundation beneath a few sleepers loses stiffness. Tamping may restore alignment for a time, but a recurring dip often points below the ballast surface: degraded aggregate, water trapped at formation level or uneven subgrade support. Foundation design must address more than bearing capacity. It must limit changes in support under repeated axle loads, rainfall and maintenance.
Here, the foundation extends from the prepared subgrade through any treatment layer and sub-ballast to the ballast beneath the track. New materials and construction methods can improve that system, but selecting them comes after identifying the ground and water conditions driving deformation.
Design for repeated loading, not just initial strength
Railway loading is concentrated and cyclic. Each wheel passage produces a short stress pulse; over many passages, small permanent strains can accumulate in ballast and soil. A formation that tests strong initially may still soften when wet, lose fines through pumping or leave adjacent sleepers unevenly supported. An existing route can also deteriorate after changes in axle load, speed, drainage or track stiffness.
Useful measures include long-term settlement, differential movement, resilient stiffness, pore-pressure response and the rate of geometry deterioration between maintenance interventions. They do not necessarily improve together. A stiff local treatment may limit settlement within its footprint while creating an abrupt transition at its edge. The question is how the whole track–foundation system distributes load and accommodates changes along the route.
Locate the mechanism before selecting a treatment
Investigation should distinguish trackbed defects from problems in deeper ground. Records of recurring geometry defects and tamping frequency help locate trouble spots. Trial pits and samples show ballast contamination, layer thickness and formation condition; geophysical surveys can map lateral variation when checked against direct observations. Groundwater readings, drainage inspections and tests of soil strength and deformation help determine whether a defect is seasonal, progressive or tied to an interface.
Record abrupt changes in performance, too, particularly at culverts, bridge approaches, old embankment extensions and cut–fill boundaries. These locations may call for a transition treatment rather than uniform strengthening over a long section.
Engineered layers and geosynthetics
Separating ballast from a fine-grained subgrade is a relatively limited intervention that can have a substantial effect. A suitable separator restricts upward migration of fines, helping the granular layer retain its drainage and load-spreading functions. Geogrids can improve aggregate confinement where interlock develops; geocells provide three-dimensional confinement in selected applications. Performance depends on placement, aggregate grading, compaction and the deformation required to mobilize reinforcement.
None of these products can, on its own, make an unstable, waterlogged formation reliable. Separators can clog, and a poorly chosen layer can impede drainage. Check hydraulic compatibility alongside tensile and installation properties. Damaged fabric, contaminated aggregate or inadequate overlap can compromise the detail before traffic resumes.
Sub-ballast options include carefully graded aggregates and stabilized layers, selected for the stiffness and drainage characteristics a site needs. Recycled constituents may replace virgin aggregate where their grading, durability, leaching behavior and variability meet the exposure and specification. What matters is whole-life performance under railway loading, not the strength of a laboratory specimen alone.
Ground improvement below the formation
If weak soil extends deeper than layer replacement can address, ground improvement may be needed. The choice depends on soil and groundwater conditions, access and the tolerance for construction-induced movement.
- Compaction and replacement can address shallow, accessible weak material, though excavation depth and stability may limit their use near operating track.
- Soil mixing or binder stabilization can increase strength and reduce compressibility in suitable soils. Mixing uniformity, curing and possible groundwater effects need verification.
- Columns and inclusions can transfer some load to stronger ground or improve the response of soft deposits. Their layout and load-transfer layer need to work as a system.
- Preloading and staged construction can reduce post-opening settlement in compressible ground where space and programme allow. Field measurements are needed to judge progress.
The risks differ by method. Reducing average settlement does not guarantee acceptable differential settlement at the treatment boundary. Nearby assets and live-track restrictions may also determine whether a feasible treatment can be built safely. Trial sections, installation records and post-treatment tests establish what was achieved, rather than what the design assumed.
Transitions deserve their own design
A bridge deck, slab track or rigid culvert moves differently from earth-supported track. At the approach, a sharp stiffness contrast can concentrate ballast degradation and speed up geometry deterioration. Adding a strong layer immediately beside the structure may simply move the defect a short distance away.
Transition design seeks a controlled change in support. Options, depending on the site, include graded layer thicknesses, local ground treatment, approach slabs or changes to track support. Lengths and details need project-specific analysis of train speed, foundation stiffness, settlement potential and maintenance access. Monitoring should cover both sides of the interface, not just the visible defect.
Water can make a transition behave inconsistently even when its structural layers are sound. Check drainage around abutments and buried structures for blocked paths, concentrated discharge and erosion of supporting material.
Drainage is part of the load path
Ballast behaves differently once fines and water fill its voids. A softened subgrade deforms under repeated loading, while pumping moves fines into the trackbed. More aggregate thickness without an outlet for water may only postpone the defect.

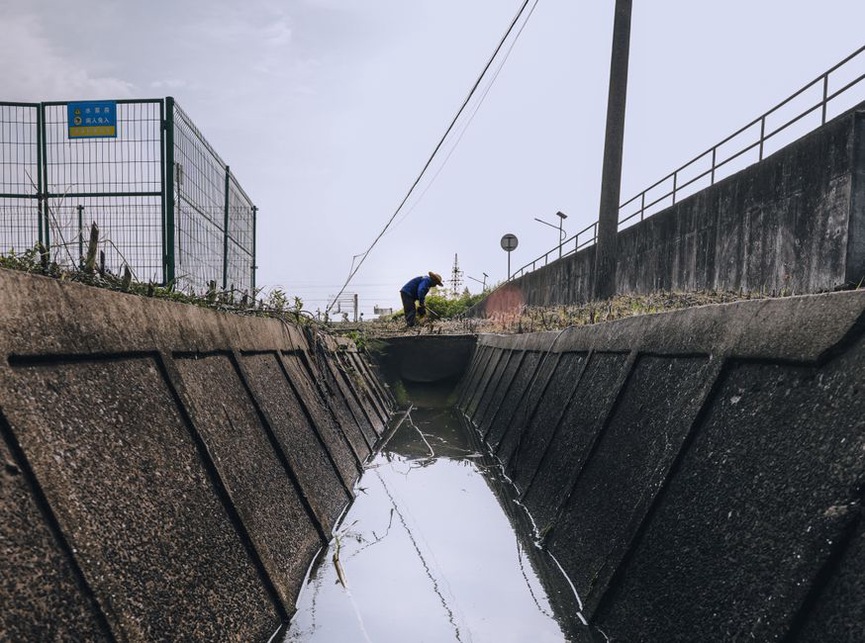

Distinguish surface runoff, lateral flow through granular layers, groundwater and water entering near structures: each follows a different path and calls for a different remedy. A permeable layer needs somewhere to discharge, or it may hold water above a less permeable formation. Where flowing water meets soil, filter compatibility matters because loss of fines can undermine support. Outlets must remain accessible for inspection and maintenance.
Digital models and monitoring: useful when tied to decisions
Detailed numerical models can represent layered materials, cyclic loading and soil–structure interaction at difficult locations. Their usefulness depends on defensible inputs and calibration. A sophisticated model cannot make up for an unknown groundwater level or an overlooked pocket of soft fill. Sensitivity studies help show how much predicted performance varies across plausible soil stiffnesses, layer thicknesses and drainage conditions.
Settlement points, pore-pressure sensors, moisture measurements and track-geometry records can show whether a treatment is behaving as expected. Continuous sensing is not always needed; measurement frequency should match the expected rate of change and the decision at hand. During staged embankment construction, readings can inform whether to place the next lift. After an intervention, geometry trends across maintenance cycles can test whether it worked.
Before installing instruments, define the baseline, measurement locations, responsible reviewer and response to a concerning trend. A reading beneath the treated section is less useful without a comparable one at its untreated boundary. Thresholds should account for measurement uncertainty and site behavior, not be copied from another railway.
Verify the constructed foundation
Design assumptions are especially vulnerable at interfaces and during short possession windows, when excavation can reveal conditions the investigation missed. A verification plan should identify findings that require review before they are covered: unexpected soft material, seepage, unsuitable aggregate, variable treatment depth or an unplanned change in formation level.
Construction records should accurately locate treatments and document material acceptance, compaction or installation results, drainage connections and departures from the planned sequence. After reopening, compare measured geometry and settlement with the predicted trend, particularly at treatment ends. Movement concentrated just beyond a repaired section is evidence about the transition, not an automatic reason to repeat the repair.
For a recurring dip at a bridge approach, start by comparing geometry history on the deck, across the approach treatment and several sleepers beyond it. Align that record with drainage and maintenance history. Where deterioration begins will guide the next ground investigation more precisely than the lowest point of the dip alone.
