A bridge pier can pass its axial-capacity check yet settle enough to disturb bearings, joints or the approach alignment. That distinction matters when assessing a new geotechnical method: higher nominal capacity is useful only if the foundation also limits movement under the conditions encountered during construction and service. The case for a new pile, treatment method or sensor rests on the particular uncertainty it helps resolve.
Those uncertainties vary along a crossing. At a river pier, variable alluvium may overlie deep weathered rock, with scour exposure and limited room for equipment. An approach embankment presents another problem: settlement in compressible ground and lateral movement near the abutment. Investigation, treatment, construction and verification need to address each mechanism on its own terms.
Better ground models from complementary measurements
Boreholes remain essential for sampling, identifying strata and testing soil or rock, but they cover little ground between locations. A narrow weak layer or buried channel can go undetected. Cone penetration testing (CPT) gives a near-continuous resistance profile at each sounding, helping identify thin layers and changes in soil behavior. Where suitable, pore-pressure measurements add evidence about drainage and aid interpretation of fine-grained soils.
Geophysical surveys can help fill the gaps. Seismic measurements may map stiffness contrasts or the depth to a competent horizon; electrical methods may show contrasts associated with saturation or material type. Neither gives an unambiguous soil description. Different materials can produce similar responses, while nearby metalwork, utilities or reinforced structures may interfere with some surveys. A practical sequence is to map a suspected boundary, check it with targeted boreholes or soundings, and revise the interpretation wherever the evidence conflicts.
The resulting ground model should show confidence in its boundaries as well as the interpreted strata. At a proposed pier, a rock surface confirmed by direct investigation carries different weight from one inferred chiefly between test points. That distinction affects estimates of pile length, construction time and the chance of an unexpected founding condition. Three-dimensional models can communicate it to structural designers and contractors, provided every interpreted surface remains traceable to the test records.
Foundation methods aimed at specific constraints
Micropiles and restricted-access works
Micropiles are small-diameter drilled and grouted elements installed with comparatively compact equipment. They may suit restricted access, sites where vibration must be limited, or work to support an existing bridge foundation. Performance depends on how load passes through the reinforcement, grout and surrounding ground. Variable fill or weak rock can make the assumed bonded length difficult to establish.
Compact equipment does not remove installation risk. Drilling deviation, grout placement, effects on adjacent foundations and load sharing with existing elements still need attention. In a retrofit, the new micropile group must be assessed with the old footing and its connections. The completed system has to engage as intended without causing unacceptable differential movement.
Improved piles and construction feedback
Large-diameter drilled shafts and other deep foundations can reach competent material below weak surface deposits, but their performance is sensitive to construction. Base cleanliness, bore stability, reinforcement placement and concrete continuity all affect the finished element. Instrumented trial elements and load tests can check assumptions in difficult ground, especially when they measure load transfer along the shaft rather than head movement alone.
Site records provide another check on the ground model. Drilling resistance, groundwater inflow, recovered material and the elevation of a confirmed bearing layer may all differ from expectations. Collecting those observations is not enough; the project needs a planned response. Hold points may be appropriate before accepting a founding elevation or changing shaft length, with criteria tied to the design and verified conditions.
Ground improvement beneath approaches and temporary works
Ground improvement can reduce settlement or increase stability where soil replacement or deep piles beneath every element would be disruptive. The methods work differently. Prefabricated vertical drains, typically paired with a surcharge, shorten drainage paths and accelerate consolidation in suitable soft soils. Deep soil mixing forms columns or panels by blending soil with a binder. Rigid inclusions carry load through a load-distribution platform; stone columns add stiffness and drainage where the surrounding ground provides enough confinement.
These methods are not interchangeable. Drains speed settlement but do not remove the need to estimate its magnitude and duration. Mixed ground must be checked for achieved strength and continuity, not just binder consumption. Rigid inclusions call for assessment of the transfer platform and movement between inclusions. Stone columns may perform poorly in very weak, unconfined deposits without additional measures. Laboratory and field trials, followed by project-specific acceptance testing, help establish whether the proposed treatment can be built in the soil actually encountered.

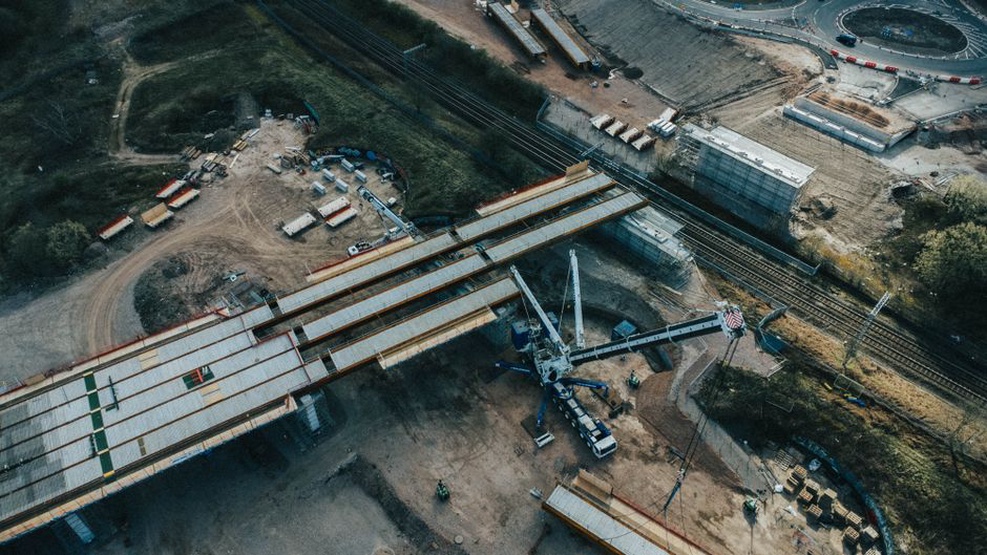

At a bridge approach, the transition to a relatively stiff abutment may matter more than total settlement. Treatment can reduce overall movement yet leave an abrupt change in profile. Staged construction, settlement readings and a defined observation period give the design team evidence before the final pavement or track alignment is fixed.
Designing with uncertainty rather than hiding it
Probabilistic analyses and sensitivity studies can expose influential assumptions; their purpose is not to produce a precise-looking risk number. A foundation assessment might vary compressible-layer thickness, groundwater level, soil stiffness and pile resistance over defensible ranges. If predicted movement changes sharply with one poorly constrained parameter, the team can target its investigation or consider a design less sensitive to it.
Numerical soil–structure models can represent construction stages and interaction among the pier, foundation and ground. They also require choices about constitutive behavior, interfaces and boundaries. Calibration against site tests or comparable local performance matters particularly when a model predicts small differential movements. Complexity cannot make up for missing ground data.
For unusual foundations, an observational approach connects predictions to construction decisions. It defines an expected response range and credible adverse behavior, then specifies measurements and actions if results fall outside that range. Monitoring becomes part of the engineering method, not an added dashboard. A contingency must still be workable when its trigger is reached: equipment that cannot reach the foundation after deck construction is no safeguard.
Scour, seismic demands and changing boundaries
Conditions after construction can change the support a foundation receives. Riverbed scour may expose piles or remove confinement around a pier, so a check based only on the surveyed bed level can overstate the available capacity. Bathymetric surveys, bed-material observations and inspections after significant flows can inform updates to the assumed ground profile. A monitoring device may detect a local bed change, but one reading cannot describe an entire scour hole.
Earthquakes can change the boundary in another way. Liquefaction or lateral spreading may displace the supporting ground even if the superstructure remains intact. Improving approach soils, extending foundations into more stable layers and accommodating displacement in the structure are different strategies, each with limits. Their effects need assessment across the full load path; the discussion of seismic bridge retrofits and the entire load path explains why strengthening one component can leave another vulnerable.
Changes in river flow, groundwater or slope behavior associated with climate can add uncertainty over a bridge's service life. The response is not to apply one larger ground parameter. It is to test plausible changes in erosion, pore pressure and inspection access, then identify which assumptions need revisiting if site conditions shift.
Monitoring that supports an actual decision
Fiber-optic strain sensing, automated settlement gauges, inclinometers and remote surveys can produce denser records than occasional manual readings. Their value depends on the question being asked. A pile strain profile can show where load transfers; a settlement gauge records movement at its installed location. Neither establishes the condition of every nearby foundation element.
- Define the decision first: say whether a reading will release the next construction stage, prompt an inspection or test an assumed load-transfer mechanism.
- Record the baseline: document initial readings, location, installation details and expected environmental effects before interpreting a trend.
- Set meaningful triggers: distinguish a change that calls for a sensor check from one requiring an engineering response.
- Preserve independent checks: compare automated readings with surveys, inspections or other instruments when a false reading would have significant consequences.
Long-term monitoring brings a maintenance obligation. Sensors drift, suffer damage or become inaccessible. Data must retain its measurement location and construction context so a future engineer can tell whether movement began during excavation, loading or a later flood. Without that record, a convincing graph may support the wrong diagnosis.
Testing whether an innovation earned its place
Comparing a conventional option with a newer method takes more than a tally of initial material quantities. Investigation, buildability, effects on nearby assets, verification testing, maintenance and the consequences of uncertain performance all matter. Low-disturbance installation may justify a specialized foundation near an operating line; a remote site with ample access may gain little from it. Reduced concrete volume helps only if movement and durability requirements are still met.
Before approving a treated bridge approach, the team can plot measured settlement against the predicted range at each construction stage and assess movement at the abutment separately from movement farther along the embankment. If one gauge breaks the pattern, check its benchmark and installation before revising the ground model. If the deviation persists, establish what it means for the final approach profile before placing the wearing surface.
