A tunnel may be stable in competent-looking rock until the face cuts a water-bearing fracture. The excavation creates a drainage path: pressure falls locally, flow increases through connected fractures, and a nearby soil-filled seam may lose fine material. Groundwater is therefore more than water to be removed. Its pressure and flow paths can change both the loads on the tunnel and the ground’s resistance.
Groundwater pressure is part of the ground model
Water pressure acts in pores, joints and fractures. In soil, rising pore-water pressure reduces effective stress—the stress carried by the soil skeleton—and can lower shear resistance. In fractured rock, pressure along a discontinuity reduces the normal force holding its surfaces together. Neither effect is the same as the direct load that an external water head may impose on a lining. An assessment must account for ground strength under the expected pressure conditions as well as hydraulic pressure on the structure.
The nearest water table does not necessarily indicate pressure at tunnel depth. A low-permeability layer may separate shallow groundwater from a deeper confined aquifer with a different hydraulic head. Faults can connect otherwise separate units, while intact rock between fractures may transmit little water. Seasonal recharge, pumping and nearby excavations can shift heads, too. What matters is which hydraulic units the tunnel intersects and how they connect—not simply its depth below the surface.
Permeability controls where water moves
Permeability describes how readily ground transmits water, but one value seldom represents an entire alignment. Water may move slowly through clay yet enter an excavation rapidly through a sand seam, open joint or fault. In limestone, connected dissolution features can dominate flow even where core samples look sound. In granular ground, permeability and grain-size distribution together affect whether seepage can carry particles toward the opening.
Flow direction matters as much as flow rate. Hydraulic gradients can concentrate flow at the face, around a shaft base or along the tunnel–ground interface. A narrow, permeable feature may deliver substantial inflow without a broad, predictable drawdown pattern. Investigation needs to establish likely pathways and their connectivity; inflow should not be assumed to vary smoothly along the tunnel.
How groundwater changes construction stability
At the face, water pressure can oppose the support pressure or ground resistance needed to keep the excavation stable. Flow toward the opening adds seepage forces and may loosen soil before a large inflow appears. In saturated granular deposits, an excessive upward gradient at a shaft or tunnel invert can cause heave or boiling. Where particles can be eroded, voids may spread beyond the first point of water entry. Which mechanism controls depends on grading, confinement, flow geometry and the route by which water escapes.
Fractured rock brings a different set of hazards. Exposing a pressurized discontinuity may release water suddenly; weak, wet fault gouge may deform or erode; and changing pressure can affect joint-bounded blocks. A modest average inflow along the alignment says little about a concentrated encounter at one face. Where geological structure points to discrete conduits, advance probing and observations of fracture filling, pressure and flow response are particularly useful.
The hydraulic boundary also changes as construction progresses. An open heading, temporary support and a completed lining do not interact with groundwater in the same way. Drainage into the excavation may lower nearby pore pressures, but consolidation of compressible deposits can then contribute to surface settlement. If a later lining restricts drainage, external pressure may recover. Construction-stage stability and long-term lining loads require related but separate assessments.
Investigate pressure, pathways and variability
A hydrogeological model should identify the units that store and transmit water, their boundaries and expected heads, and the features connecting them. Boreholes and cores show stratigraphy and discontinuities where they are sampled. Piezometers measure head at their screened intervals, while hydraulic tests indicate how ground responds to imposed flow or pressure. No single method maps the whole system. Tests are easier to interpret when their intervals isolate hydrogeological units rather than combine layers with different heads.
Water levels recorded during drilling need careful interpretation. Drilling fluids, brief observation periods and connections opened by the borehole can obscure formation pressure; low-permeability ground may take time to equilibrate. Nested or otherwise separated intervals can distinguish shallow and deep heads if the installation prevents unintended cross-flow. A time series reveals more than a single reading: it may show recharge, tidal effects where relevant, pumping influences or delayed pressure recovery.
Investigation should focus on uncertainties that could change an engineering decision. Questions include:
- Which water-bearing layers or structures will the excavation intersect, and how uncertain are their positions?
- Do measured heads represent conditions during construction and credible high-water conditions?
- Could tunnel drainage affect compressible ground, existing foundations or water-dependent features beyond the excavation?
- Does groundwater chemistry pose a durability concern for the proposed lining or drainage components?
- What observation would distinguish inflow from a local fracture from a response in a regionally connected aquifer?
A low inflow in an exploratory borehole does not establish that the tunnel will be dry. The borehole may miss a narrow conduit; excavation exposes a much larger surface and can connect features that were previously separate.
Use models to test decisions, not erase uncertainty
Analytical estimates and numerical groundwater models can examine inflow, drawdown and pressure recovery under different assumptions. They are most useful for testing plausible connections, boundary conditions and permeability contrasts. A detailed model can still give a misleadingly precise result. Predictions need to state the assumptions that govern them, particularly where data cannot resolve a fault zone or confined unit. Construction measurements of head and inflow can then be checked against predicted ranges and used to revise the model.
Control measures have different hydraulic consequences
Drainage, dewatering, grouting, ground treatment and pressure-controlled excavation address different problems. Drainage can relieve pressure on an excavation or lining, but sustained drawdown may cause settlement or affect groundwater availability. Dewatering can improve working conditions in some ground; elsewhere, gradients toward pumps or excavations need close assessment. Grouting seeks to restrict flow through selected pathways, with results depending on access and verification. Where suitable for the ground encountered, pressure-controlled excavation can limit loss of water and ground at the face.
Keeping the tunnel dry is not the only measure of success. Restricting inflow may leave higher external pressure on the lining; allowing controlled drainage creates a lasting need to maintain the flow path. Blocked drains can change the hydraulic condition after commissioning. Groundwater changes may also have environmental effects beyond the excavation; [environmental pathways, controls and monitoring during tunnel construction] form a separate part of the assessment.
Water chemistry matters in service as well. Depending on the water and materials, dissolved constituents may contribute to corrosion, chemical attack or deposits that block drains. Samples should represent the relevant water-bearing units and account for changes when waters mix or groundwater is exposed to air. Initial water quality alone may not reveal a later maintenance problem.
Monitor responses against an explicit ground model

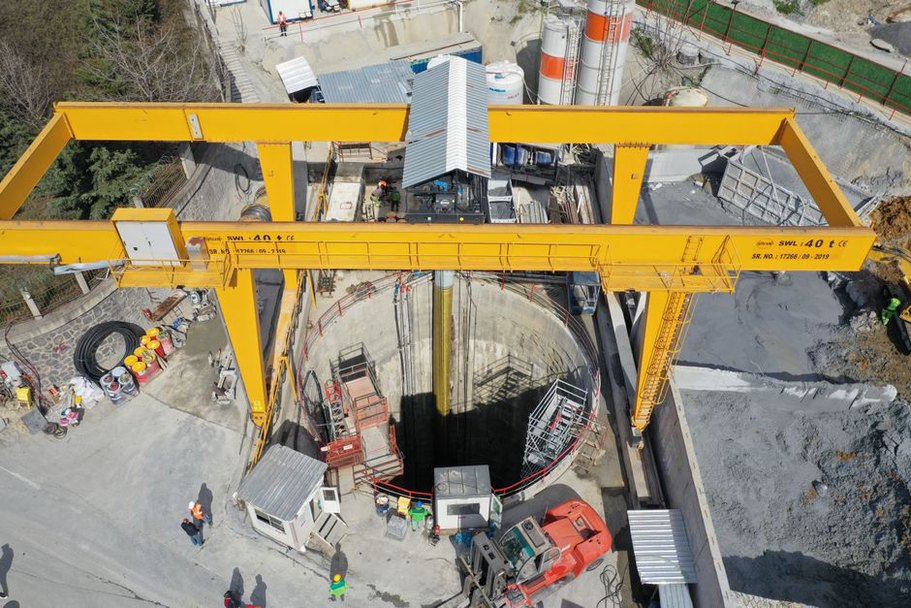

Each monitoring measurement should test an expectation in the ground model. Piezometers track pressure in affected units; inflow records locate and time water entry; settlement points can reveal a response to drawdown or material loss. Readings need to be linked to location, depth, timing and construction activity. A sudden rise in inflow after the face meets a fractured zone calls for a different interpretation from a gradual seasonal rise across several headings.
The project team should link trigger levels to credible mechanisms and agreed response actions rather than use a generic template. A trigger might combine a pressure change in a confined unit with settlement trends or increased sediment in pumped water. Trends warrant attention before a limit is crossed: rising turbidity can signal particle movement even while flow remains manageable.
On a long tunnel, records should tie chainage to mapped ground conditions, inflow, support installation and piezometric response. Suppose pressure outside a completed section recovers while drain flow falls. Inspection can help establish whether recharge matches the ground model or an intended drain is becoming obstructed. Those two findings call for different revisions to the hydraulic assessment.
