Railway track geometry isn't a fixed property. It's a shifting balance between mechanical loading and how the subgrade responds. A vertical alignment shift of just a few millimetres usually points to a deeper, evolving geotechnical problem rather than a simple tamping shortfall. Take progressive shear strain in a clay embankment: it can show up first as a subtle twist fault, then develop into a critical cyclic softening condition under repeated axle loads. Connecting these dots means moving the diagnostic focus away from the rail head and down into the stress path running through the soil mass.
Pore water pressure is the main variable governing this balance, especially in fine-grained formations. Railway corridors often cross low-permeability strata where loading frequencies—set by train speed and bogie spacing—get close to the consolidation rate of the subgrade. When excess pore pressure can't dissipate between axle passes, effective stress drops sharply, momentarily cutting shear strength to near zero. Standard static bearing capacity analyses miss this entirely. It's called the undrained cyclic failure envelope. Sensible monitoring programmes therefore concentrate on measuring pore pressure response directly or indirectly at several depths below the sleeper-soil interface.
Instrumentation Zones and Sensor Hierarchy
The spatial variability of dynamic stress influence defines three distinct monitoring zones. The zone of major influence reaches from the sub-ballast layer down to a depth roughly equal to the sleeper spacing width; here the vertical stress increment stays above 20% of the applied surface pressure. Below that sits the zone of significant attenuation. Stresses spread laterally, and the rate of strain accumulation is driven by long-term volume change trends rather than individual train events. The third zone covers the natural ground beyond the engineered prism, where seasonal moisture swings often dominate the deformation signal.
Sensor selection has to match the mechanical regime of each zone. In the upper zone, dynamic earth pressure cells with a high natural frequency and low aspect ratio give the granular resolution needed to capture individual bogie signatures. Sampled above 500 Hz, these data streams reveal characteristic signature curves of transient principal stress rotation. Deeper installations call for multi-point borehole extensometers paired with in-place inclinometers to track the lateral spread vector. The transition between the embankment shoulder and the natural slope is a critical spot: inclinometer casings here frequently pick up a shear zone developing parallel to the original ground surface.
Time-Domain Reflectometry and Moisture Profiling
Volumetric water content isn't uniform across the track cross-section. The differential wetting pattern between the cess, the six-foot, and directly beneath the rails creates a complicated suction profile. Time-domain reflectometry (TDR) probes installed horizontally from the shoulder can map this moisture gradient with a spatial resolution better than 0.5 metres. Correlated with rainfall data from on-site tipping bucket gauges, TDR arrays distinguish between rapid infiltration through ballast pockets and slower, capillary-driven moisture rise from a fluctuating water table. That second mechanism is particularly troublesome because it reduces matric suction without any visible surface water source, softening the formation gradually over weeks rather than hours.
On lines founded on expansive or collapsible soils, matric suction isn't just an indicator—it's the primary strength parameter. Tensiometers or indirect suction sensors based on dielectric permittivity need to be integrated into the monitoring setup to define the soil-water retention curve in situ. A sudden drop in suction below the air-entry value in a compacted clay fill often comes before volumetric collapse under the constant confining load of the track structure. The resulting settlement magnitudes can't be fixed by tamping alone.
Geophysical Tomography for Continuous Profiling

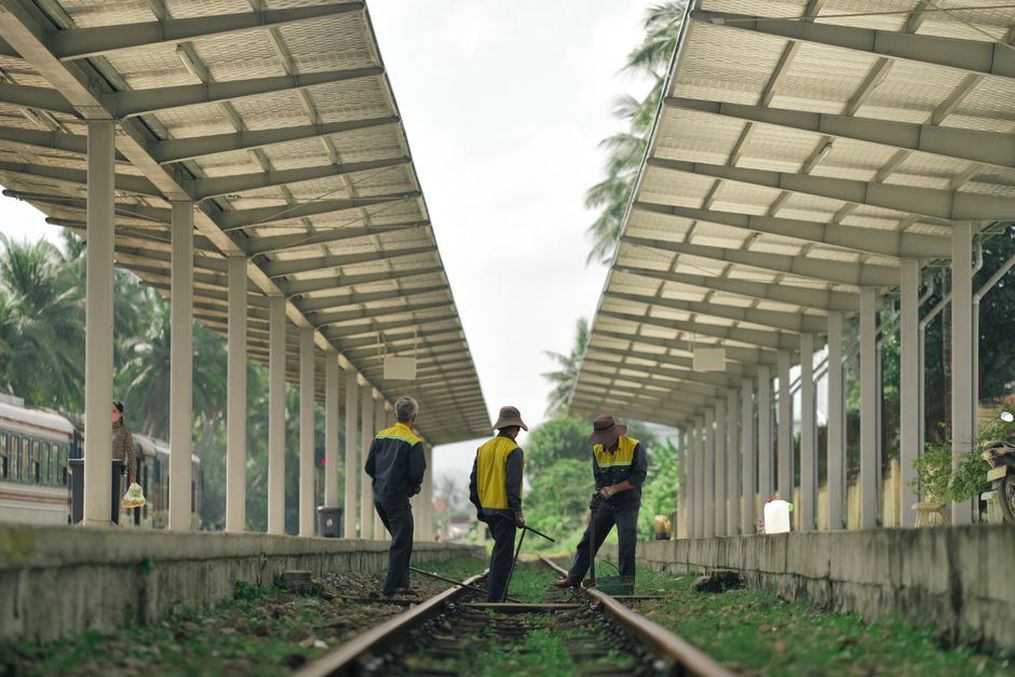

Point-source instruments are precise, but they deliver discrete data that can miss isolated anomalies—buried culvert leaks or relic drainage channels, for instance. Electrical resistivity tomography (ERT) deployed as a permanent array along the cess or embedded within the ballast shoulder provides a time-lapse image of subsurface conductivity. Since electrical conductivity in soils is dominated by pore fluid chemistry and saturation, a decreasing resistivity anomaly that grows longitudinally often flags a developing water path. Cross-hole seismic tomography between boreholes on either side of the track adds complementary information on the small-strain shear modulus (Gmax), which degrades measurably before large plastic deformations set in.
Interpreting these tomograms demands a site-specific petrophysical relationship calibrated through laboratory testing of undisturbed samples. The ratio of seismic P-wave to S-wave velocity is especially sensitive to the transition from unsaturated to saturated conditions. A Poisson's ratio creeping toward 0.5 in a previously stiff formation is a reliable precursor to loss of bearing capacity. Automated inversion algorithms can now process this data fast enough to trigger an alert before a slow-moving passenger train reaches the affected segment.
Solid track stability depends on weaving these geophysical insights together with structural monitoring of the permanent way components. The principles of advanced structural monitoring, originally refined for bridge assets, now inform the data fusion architectures used in continuous railway geotechnical surveillance.
Interferometric Synthetic Aperture Radar and Remote Displacement
Satellite-based InSAR delivers a wide-area displacement map that fills the gaps ground-based instrumentation leaves. Persistent scatterer interferometry, using a stack of high-resolution X-band radar images, can pick up line-of-sight deformation rates as low as 2 mm per year on stable reflectors like signal gantries or exposed rock outcrops next to the line. For embankments, where coherent natural scatterers are scarce, the workaround is installing artificial corner reflectors oriented toward the satellite's ascending and descending orbits. Decomposing the two line-of-sight vectors separates the vertical and east-west displacement components, isolating the settlement signal from lateral spreading.
The temporal resolution of satellite revisits—typically 11 to 16 days for current commercial constellations—rules out real-time warning but makes the technique exceptionally powerful for spotting zones of accelerating creep that need targeted ground investigation. A linear trend shifting to a hyperbolic acceleration curve in an InSAR time series is a classic signature of tertiary creep: the factor of safety has dropped below unity and a progressive slope failure is underway.
Trigger Levels and Action Response Framework
Data without a decision framework has limited operational value. Monitoring systems for railway stability need three action tiers based on rate and absolute magnitude. A green advisory allows routine maintenance. An amber alert demands a line speed reduction and a visual inspection within 24 hours. A red alarm means immediate closure and emergency intervention. Thresholds aren't generic—they come from the strain-softening characteristics of the specific formation material. For a strain-softening clay, the amber threshold might correspond to a cumulative shear strain of 2%, while the red threshold aligns with the strain at peak strength, beyond which the material moves onto the residual strength surface.
Machine learning classifiers trained on historical track geometry car data and synchronised weather records can now predict the probability of a geometry fault developing within the next 14 days. These models ingest dynamic soil pressure data, pore pressure ratios, and rainfall intensity to output a risk heat map along the route. The most effective implementations feed this output straight into the tamping scheduling system, turning soil behaviour monitoring from a safety alarm into a predictive maintenance tool that extends the life cycle of the ballast and formation layers.
Field validation of a trigger framework calls for a controlled load test using a calibrated vehicle of known axle weight and speed. The response of pore pressure transducers during the passage of this known load establishes a baseline transfer function. Any deviation from that baseline during subsequent revenue-service traffic signals a change in the soil's drainage condition or stiffness, even if the absolute pressures stay within the defined alert limits. This differential approach filters out the effect of varying train loads and isolates the soil behaviour signal.
