A bridge pier can survive its calculated inertial load and still become unusable if the ground beneath a support moves permanently. Shaking increases forces in a foundation; liquefaction, lateral spreading and fault displacement can instead change its position or restraint. Those effects need separate checks. Strengthening a pier alone cannot prevent loss of bearing support or excessive movement between spans.

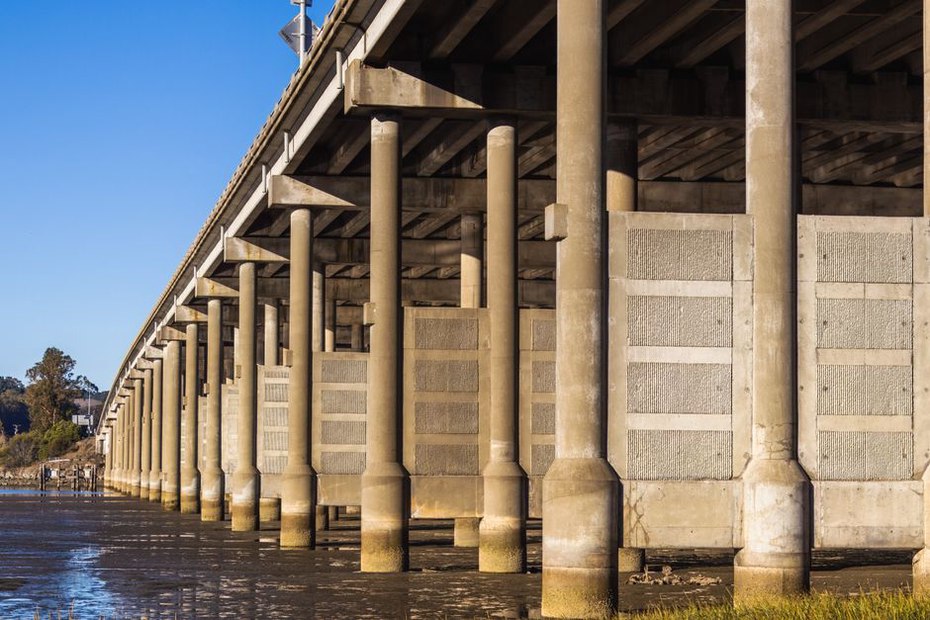

The question is not just how strong the earthquake will be, but how motion travels through the site, how the supporting soil responds and whether the bridge can accommodate the resulting foundation movement. At a crossing with piers on rock and abutments on deep alluvium, the same event can place markedly different demands on each support.
Two routes from earthquake to foundation demand
Transient demand develops during shaking. Inertia in the superstructure and piers transfers changing horizontal and vertical forces, along with overturning moments, into footings, piles or shafts. At the same time, moving ground acts on embedded foundation elements. Structural loading and soil movement may act together, though their peaks need not coincide.
Permanent ground deformation remains after strong motion subsides. Settlement, lateral spreading toward a river channel, slope movement or fault displacement can shift a support relative to the deck. Even modest residual movement matters where bearings, joints, seat lengths or rail alignment have little capacity to accommodate it. The consequence may be loss of serviceability or access rather than foundation collapse.
Treating every seismic effect as a larger horizontal force at the top of a pier misses this distinction. A force-only model cannot describe a pile group dragged sideways by spreading soil or an abutment settling behind an intact span.
Why the ground beneath each support matters
Local geology shapes the shaking a bridge experiences. Rock profile, soil stiffness, groundwater depth and valley or basin geometry influence motion at foundation level. Soft deposits may amplify certain frequencies or lengthen shaking; a change from rock to sediment can produce different motions along the same bridge. Peak acceleration alone does not describe the demand. The relationship between the motion’s frequency content and the bridge’s response matters too.

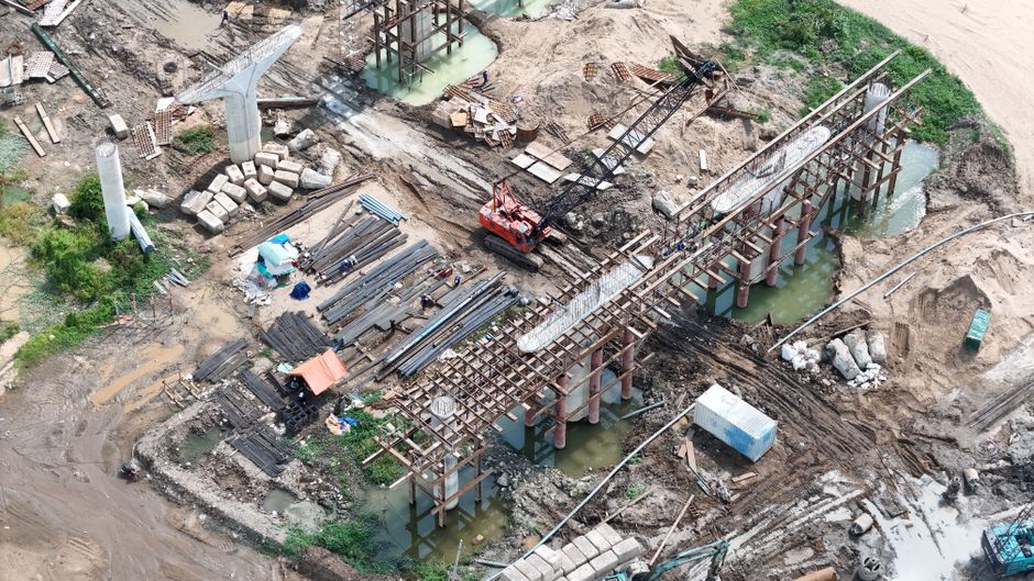

Ground conditions therefore need to be understood at each support, especially across transitions. A boring at one abutment cannot automatically describe a mid-channel pier founded in younger deposits. Evidence may include stratigraphy, groundwater observations, in-situ resistance measurements, shear-wave velocity, laboratory tests on representative soils and the geometry of buried channels. Each source has uncertainty. The interpreted ground model must still make sense across the whole crossing.
Liquefaction and loss of lateral restraint
Saturated, loose, contractive granular soils can develop excess pore-water pressure under cyclic loading. As effective stress falls, the soil may lose stiffness and strength. Susceptibility can vary by layer, and drainage conditions affect how pore pressures build and dissipate.
For a shallow foundation, reduced bearing resistance and post-shaking settlement may control. For piles, loss of lateral support within a liquefied layer can concentrate bending where it meets firmer soil. A pile can also be loaded laterally when soil spreads toward an unsupported face such as a riverbank. Modeling that spread only as reduced soil stiffness misses the imposed displacement and the forces it generates.
Assessment calls for three separate judgments: whether the deposit may liquefy, how far it may deform and what that deformation means for the foundation and bridge. A susceptibility screening result does not establish pile curvature, support settlement or deck displacement.
Slopes, faults and differential movement
Bridge approaches and abutments often sit on ground unlike that beneath the main piers. Embankment fill may settle or move sideways, a cut slope may become unstable, and a bank may spread toward a watercourse. The resulting movement can damage wing walls, backwalls and approach slabs or alter bearing clearance. It may first appear as a misaligned expansion joint or a sharp change in track or roadway grade.
Where an active fault crosses the site, its displacement pattern needs explicit attention. Ground rupture is not vibration: a localized, lasting offset can be difficult to accommodate through strength alone. Because fault location and displacement are uncertain, the assumed rupture scenarios should be visible in the assessment rather than buried in a generic seismic coefficient.
Foundation type changes the failure mechanism
The same ground hazard can have different consequences depending on the foundation. These distinctions help when reviewing an analysis, although actual behavior depends on geometry, construction details and soil profile.
- Spread footings: sliding, rocking, bearing degradation or differential settlement may govern. Rocking can limit transmitted force in some circumstances, but the associated rotation and residual displacement must remain compatible with the bridge.
- Piles and pile groups: demand can concentrate at pile heads, at boundaries between strong and weak strata, or where lateral spreading imposes movement. Group interaction and pile-cap stiffness affect how load is shared.
- Drilled shafts: substantial embedment does not eliminate curvature demand. Changes in soil stiffness with depth and restraint at the shaft head influence where bending is highest.
- Abutment foundations: the foundation interacts with retained soil, wing walls, bearings and approach fill. Both shaking-induced backfill pressure and permanent approach movement matter.
Construction history changes the picture. An older pile group may have undocumented splice details; a footing may rest partly on improved ground; scour may have reduced effective embedment since construction. Current foundation geometry and condition matter as much as the original drawings. Scour and seismic demand are distinct hazards, but a changed riverbed can alter the foundation configuration used in a seismic assessment.
From site evidence to a credible analysis
Begin by defining what the bridge must do after an earthquake. Life safety, limited damage and rapid reopening imply different tolerances for foundation displacement, bearing movement and approach damage. State the performance objective before choosing the analytical detail; otherwise, even a sophisticated model may produce numbers without a clear decision attached.
Then examine the crossing as a system, not a set of isolated footings. Record foundation elevations, deck continuity, bearing arrangements, pier stiffness, joints, abutment restraint and ground conditions at each support. This shows where differing support motions could create deck forces or loss of alignment. It also helps identify the uncertainties that matter most: perhaps groundwater level, the thickness of a liquefiable layer, pile-head fixity or the actual depth of an older foundation.
Choosing what to model
Not every bridge calls for the same analysis. Preliminary screening can identify plausible ground failures and vulnerable components. A more detailed evaluation may represent nonlinear structural response, soil resistance and imposed ground displacement. The method needs to resolve the mechanism that could control the decision.
Several distinctions are easy to miss:
- Inertial versus kinematic loading: inertial demand comes from acceleration of the bridge; kinematic demand comes from deformation of the surrounding ground. Combining them requires attention to timing and compatibility, not automatic addition of unrelated peak values.
- Force versus displacement input: lateral spreading is commonly a ground-displacement problem. A nominal lateral force alone may obscure the movement imposed along an embedded foundation.
- Free-field versus foundation motion: soil movement predicted away from the bridge is not necessarily the movement of a stiff pile cap. Soil-foundation interaction affects both displacement and internal forces.
- Transient versus residual response: peak bending during shaking and the final support position can govern different checks. Both may matter for safety and reopening.
Soil properties can change during strong shaking. Assigning one stiffness to a potentially liquefying layer throughout the event may misrepresent the sequence of demand. Assuming zero resistance everywhere after liquefaction can be just as crude. Testing defensible ranges of properties is often more useful than reporting one precise-looking result. For the broader bridge-level context, assessing seismic vulnerability in bridges considers how component behavior affects overall performance.
Reading results without false precision
A calculated pile moment or footing displacement means little without its assumptions. Report the ground-motion scenario, groundwater condition, soil model, assumed foundation details and treatment of uncertainty. If a small change in a soil-layer boundary substantially alters predicted lateral spread, that sensitivity is a finding, not something to conceal.
Look at the pattern of response as well as the maximum. Curvature concentrated at a pile-head connection raises a different concern from curvature at the base of a liquefiable layer. Settlement at one abutment creates different deck and approach demands from settlement shared by every support. A foundation may pass a strength check while leaving too little bearing engagement or excessive joint movement above it.
For an existing bridge, inspection evidence can test the assumed support conditions. Persistent tilt, recurring joint distress, displaced backfill or unexplained approach settlement may show that the assumed conditions are wrong even before an earthquake. Instrumentation can help address a specific uncertainty, provided measurements have a defined decision threshold and their limits are understood.
What to check after strong shaking
Foundation damage after an earthquake may be hidden below ground or water. An intact deck does not establish that its supports are intact. Initial access and safety decisions call for coordinated inspection of the superstructure, bearings, joints, piers, abutments, approaches and surrounding terrain, followed by underwater or subsurface investigation where the signs warrant it.
Clues include new pier inclination, changed bearing position, opened or closed joints, cracks near pile caps, settlement behind abutments, ground fissures, sand ejecta and riverbank movement. None uniquely diagnoses buried damage. Sand ejecta shows that liquefaction occurred nearby but does not measure pile damage; a tilted pier may reflect ground displacement, foundation rotation or structural damage. Surveying support positions against a reliable reference is more dependable than visual impression alone.
If reopening hinges on an uncertain foundation, record the location, elevation and photographs of each observed change, including at supports that appear undamaged. Repeating the survey at a suspect abutment and its nearest pier can show whether their relative positions remain stable; a single post-event measurement cannot.
