A bridge foundation may remain structurally intact while its performance margin gradually declines because of scour, cyclic loading, consolidation, or changing groundwater conditions. The task is not simply to transfer vertical loads into the ground. It is to maintain predictable stiffness, lateral resistance, and durability during construction and throughout decades of environmental loading.
Foundation practice is moving away from broad conservative assumptions where better evidence is available. Improved ground models, targeted treatment, practical installation methods, and measured verification are especially valuable where access is limited, strata are variable, waterways shift, or an existing bridge must remain operational during strengthening work.
From nominal capacity to whole-life foundation performance
Bridge foundation selection has traditionally started with shallow foundations, driven piles, drilled shafts, or caissons. Those categories remain essential, but selection and detailing now extend beyond ultimate geotechnical resistance. Settlement, rotation, lateral displacement, constructability, vibration and noise limits, inspection access, environmental exposure, and deterioration detection can all govern the final solution.
For bridge substructures, deformation may control performance before bearing resistance does. Small differential movements between piers, or excessive abutment rotation, can affect bearings, joints, approach slabs, drainage paths, and deck alignment. Analysis and monitoring therefore need to address stiffness and movement, rather than treating capacity as the only limiting condition.
Performance questions that shape foundation design
- How variable are the bearing strata, and can their geometry be established with sufficient confidence?
- Will seasonal groundwater changes, riverbed lowering, or excavation alter effective stresses around the foundation?
- What lateral and cyclic demands arise from braking, wind, vessel impact, thermal movements, seismic shaking, or flowing water?
- Can the selected method be installed and verified within access, headroom, noise, and environmental constraints?
- Which observable quantities would indicate that the foundation system is departing from expected behavior?
These questions do not identify a universal best foundation. They help engineers match methods to site-specific uncertainty and place verification measures where they are most useful.
Higher-resolution ground models and digital ground representation
The quality of a foundation concept is limited by the quality of the ground model. Boreholes, laboratory testing, in-situ tests, geophysics, construction records, and topographic or bathymetric surveys can now be brought together in three-dimensional geological and geotechnical models. Rather than representing the ground as a small number of laterally uniform layers, these models can show sloping rockheads, buried channels, loose lenses, weathered zones, and interfaces that may control pile length or settlement.
Digital ground models are useful only when their uncertainty is made clear. Interpolation between boreholes can create an impressive but misleading sense of precision. Good practice separates measured data from interpreted boundaries and records confidence in critical features. This matters particularly at bridge piers in alluvial valleys, where sediment thickness or density can change abruptly over distances similar to pier spacing.
Integration with numerical analysis
Finite-element and finite-difference soil-structure interaction models can assess pile-group load sharing, nonlinear lateral response, staged construction, and interaction between foundations and nearby embankments. Their value depends on suitable constitutive models and realistic input parameters. A sophisticated model cannot compensate for an unrecognized weak layer, an uncertain groundwater regime, or interface behavior assumed without support from site evidence.
A useful workflow calibrates models in stages. Preliminary parameters inform the initial concept; targeted investigation addresses the largest uncertainties; construction observations test assumptions; and long-term monitoring can refine the operating model. This is more informative than treating numerical analysis as a one-off calculation disconnected from field performance.
Advanced deep foundation systems
Deep foundations remain necessary where competent material cannot be reached economically with shallow footings, where scour may remove support around a pier, or where lateral loads and overturning require substantial embedded stiffness. Development is taking place both in foundation elements and in installation control.
Large-diameter drilled shafts with integrity assurance
Drilled shafts can provide high axial capacity and substantial lateral resistance with relatively few elements. They are often used for major piers, particularly where pile driving would create unacceptable vibration or where boulders and hard strata make driving difficult. Key risks include sidewall instability, sediment at the base, slurry contamination, necking, inclusions, and concreting defects.
Current practice increasingly combines excavation logging, slurry-property control where slurry is used, cleanout verification, concrete-volume reconciliation, and post-construction integrity testing. Thermal integrity profiling, for example, interprets heat generated during cement hydration to identify anomalies in shaft geometry or concrete continuity. Crosshole sonic logging and other methods can provide supporting evidence, although each has detection limits and should be specified for the shaft geometry, reinforcement arrangement, and likely defect mechanisms.
High-capacity steel and concrete piles
Driven tubular steel piles, precast prestressed concrete piles, and steel H-piles offer different balances of strength, stiffness, durability, and installation behavior. Pile-driving systems can record blow counts, penetration per blow, energy transfer, and other operating data. When qualified engineers interpret these records alongside ground information and appropriate testing, they can support installation control and reveal unusual subsurface changes.
Dynamic load testing and selected static load tests remain important for reducing uncertainty. Instrumented test piles can distinguish shaft resistance from toe resistance and show how resistance develops with displacement. Results cannot automatically be applied to every production pile; differences in installation, soil variability, and pile geometry still require assessment.
Micropiles and small-diameter drilled systems
Micropiles are often well suited to underpinning, seismic retrofits, abutment stabilization, and foundation work under low headroom. Their small diameter, adaptable inclination, and relatively light equipment allow work in confined spaces. Load transfer commonly relies on grouted bond length in competent soil or rock, while caps or brackets distribute loads into the existing structure.
They are not simply smaller conventional piles. Grout quality, drilling method, bond-zone geology, corrosion protection, and connection detailing are central to performance. Their high strength-to-size ratio can be useful, but the behavior of the whole system—including group stiffness and cap response—still controls movement of the supported pier or abutment.
Ground improvement as part of the foundation system
Where deep foundations would be unnecessarily difficult, or where weak ground affects approach structures as well as piers, ground improvement can change the engineering problem. Options include rigid inclusions, jet grouting, deep soil mixing, compaction grouting, permeation grouting, stone columns, and controlled compaction. Suitable methods depend on grain size, groundwater conditions, organic content, obstructions, contamination, and the required depth of treatment.
Rigid inclusions can limit settlement by transferring loads through compressible soils toward deeper competent layers, often with a load-transfer platform. Deep soil mixing creates soil-cement columns or panels that can increase strength and reduce permeability. Jet grouting can form localized columns, panels, or blocks around complex geometries, including existing foundations. Because treatment geometry and material properties are created in the ground rather than manufactured under factory conditions, every method requires a defensible verification plan.
| Technique | Typical bridge application | Primary verification concern |
|---|---|---|
| Deep soil mixing | Soft-ground improvement beneath abutments or embankments | Binder dosage, continuity, and strength variability |
| Jet grouting | Localized underpinning, seepage cutoffs, complex geometries | Column diameter, overlap, spoil return, and achieved properties |
| Rigid inclusions | Settlement control under approach fills and spread footings | Load-transfer behavior and inclusion installation records |
| Compaction or permeation grouting | Targeted densification or void treatment | Grout take, pressures, ground heave, and treatment extent |
Instrumentation during trial sections is often more informative than relying only on nominal treatment parameters. Settlement plates, inclinometers, pore-pressure sensors, cores, and in-situ testing can show whether treated ground is performing as intended before full production begins.
Resilience against scour, water, and cyclic demand
At river crossings, the design ground surface is not fixed. Local scour around a pier, contraction scour across a channel, long-term degradation, and flood-borne debris can remove material that previously provided lateral support or axial resistance. Foundation geometry, embedment, armoring, and structural continuity therefore need to be considered alongside hydraulic conditions, not as separate disciplines.

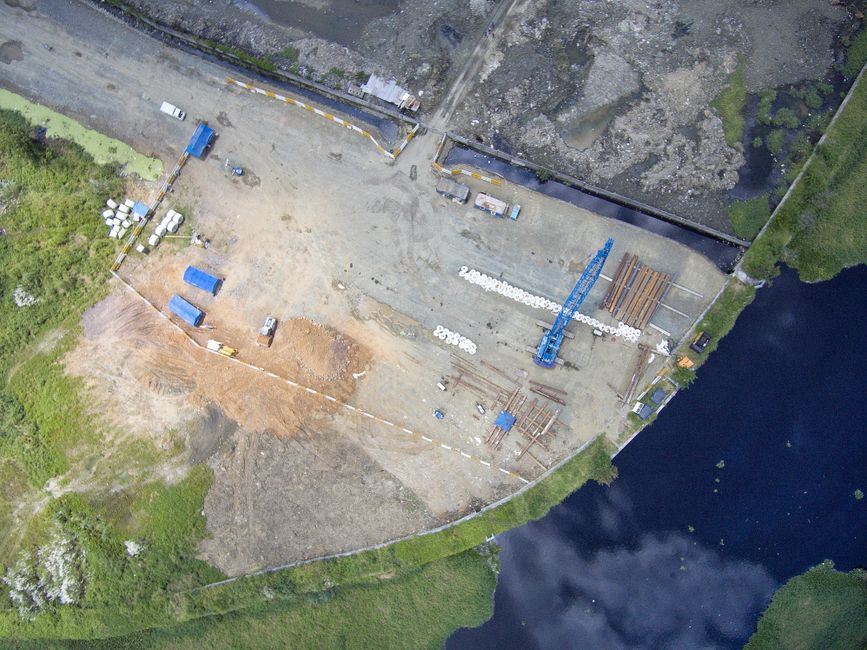

Scour management can combine repeat bathymetric surveys, fixed reference points, sonar where conditions allow, remote sensing, and sensors at vulnerable piers. These measurements support risk-based inspections after significant events and help distinguish short-lived bed fluctuations from progressive channel change. The broader principles of condition sensing and data interpretation are covered in Smart Monitoring for Safer Transport Infrastructure.
Cyclic loading introduces another concern: soil stiffness and resistance can change after repeated loading even when individual cycles remain below an ultimate limit. For piles in loose saturated sands, soft clays, or sensitive deposits, assessments may need to consider cyclic degradation, excess pore-water pressure, accumulated displacement, and post-event reconsolidation. Seismic assessment adds kinematic interaction, liquefaction potential, lateral spreading, and the possibility that piles must bridge a moving ground zone.
Sensor-enabled foundations and observational engineering
A sensor does not make a foundation safe on its own. Its value depends on a defined decision chain: a measured parameter, a credible baseline, thresholds or trend criteria, data-quality checks, assigned interpretation responsibility, and a planned response. Without these elements, monitoring can produce large volumes of data without reducing uncertainty.
Foundation monitoring may include vibrating-wire piezometers, inclinometers, settlement sensors, strain gauges in reinforcement or pile elements, corrosion sensors, accelerometers, and water-level or scour sensors. Fiber-optic sensing can provide distributed strain or temperature information along long lengths and may help identify localized changes. Installation durability, cable protection, calibration, redundancy, and maintenance access need consideration during design.
Using monitoring to manage construction risk
The observational method is particularly relevant where ground behavior cannot be fully predicted before excavation, loading, or staged embankment construction. It requires defined acceptable behavior, contingency measures, and monitoring that can identify divergence early enough for action. It does not replace adequate investigation or design; it provides a controlled way to manage residual uncertainty.
Consider an abutment founded near a compressible deposit. Baseline readings can be taken before fill placement, then settlement and pore-pressure trends during staged loading can be compared with expected ranges. If pore pressures dissipate more slowly than expected, or lateral movement exceeds trigger criteria, the next fill stage can be delayed or modified under the approved response plan. Measurements then become a construction control rather than a record reviewed after the fact.
Rehabilitation and strengthening of existing foundations
Aging bridges may need greater load capacity, improved seismic performance, or mitigation of deterioration without full replacement. Foundation interventions can include micropile underpinning, enlarged pile caps, supplemental drilled shafts, jacketing of exposed pile sections, grout treatment of voids, and scour countermeasures. Existing drawings are useful, but they should not be treated as complete. As-built geometry, reinforcement, foundation depth, and ground conditions may require confirmation through records review, non-destructive investigation, selective exposure, and carefully planned intrusive work.
Load transfer is the critical issue in underpinning. New elements do not carry load simply because they sit beside an old footing. Connection details, sequencing, jacking procedures where used, stiffness compatibility, and long-term differential movement determine whether the strengthened system performs as intended. A broader asset-management perspective is developed in Reviving Our Transport Networks: Tackling Aging Infrastructure.
Verification must accompany innovation
New technologies change how engineers investigate, build, and measure foundations, but they do not eliminate core geotechnical uncertainty. Sound foundation projects maintain independent checks between the ground model, calculated response, installation records, test results, and monitored behavior. Where those sources disagree, the result should prompt engineering review rather than be averaged away.
A practical verification matrix assigns each significant risk to an observation and an owner. For a drilled shaft, rock-socket quality may be checked through excavation logs and core recovery; base cleanliness through cleanout evidence; concrete continuity through thermal or sonic testing; and lateral performance through the agreed analytical model and, where appropriate, load-test data. Setting out this matrix before procurement clarifies acceptance criteria, required records, and response actions while changes remain manageable.
